Internal trimming:
- Max. outside diameter: 2700 mm
- Maximum bore diameter: 2000mm
- Min. bore diameter 790 for module 20
- Min. bore diameter 720 for module 10
- Max. cutter diameter: 380
- Bore of milling cutter: 80
- Center distance of cutter/workpiece – from 60 to 1460 mm
External trimming:
- Maximum diameter: 2000 mm
- Center distance between milling cutter and workpiece from 380 to 1780 mmMachine power : 42 Kw
- Table diameter: 1800 mm
- Table bore: 300 mm
- Cutting stroke: 650 mm
- Minimum number of teeth: 24
- Tooth by tooth trimming
Equipment :

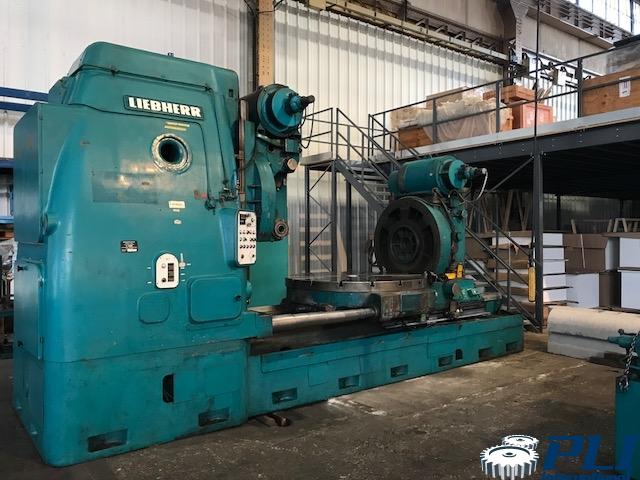

- Machine equipped with an internal gear cutting head + 1 external gear cutting head
- Electrical cabinet in excellent condition
- Dividing wheels
