Features:

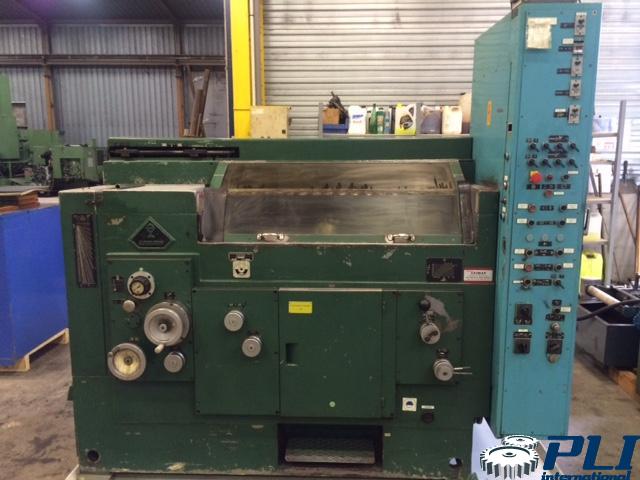

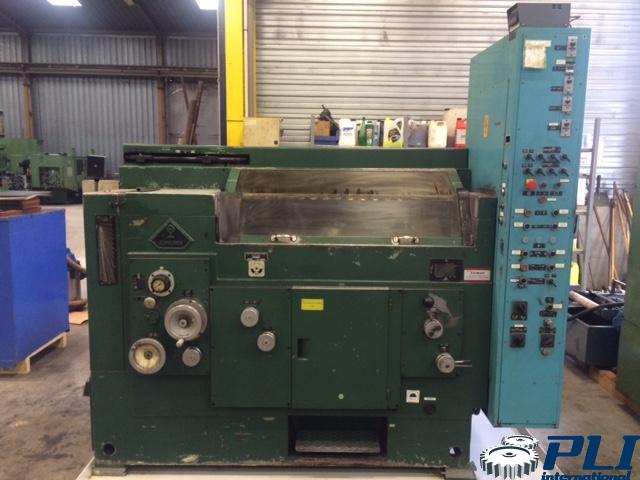

Machine for sharpening hobs: straight + helical
Grinding length 475 mm
Module 20 mm
Maximum diameter of the grinding wheel 250 mm
Minimum diameter of the grinding wheel 150 mm
Max. milling cutter diameter (spiral flute) 230 mm, (straight flute) 250 mm
Minimum diameter of milling machine
Tilt angle 45°/0°.
Maximum working stroke 380 mm
Maximum depth 50 mm
Minimum helical pitch of the flutes 5
Maximum helical pitch of the flutes with additional gears 3
Number of grooves 3 to 45
Cutter shafts 27/32/40 mm
Wheels
Number of teeth (cutters) 3-39
Grinding wheel speed, continuously variable from 1500 to 2700 rpm
Speed of the wheel carriage, infinitely variable from 0 to 16 m/mn
Cone of the ISO workpiece spindle n°40
Index plates.
Wheel diameter min/max 150/250
Dimensions 2060*1150*1700
