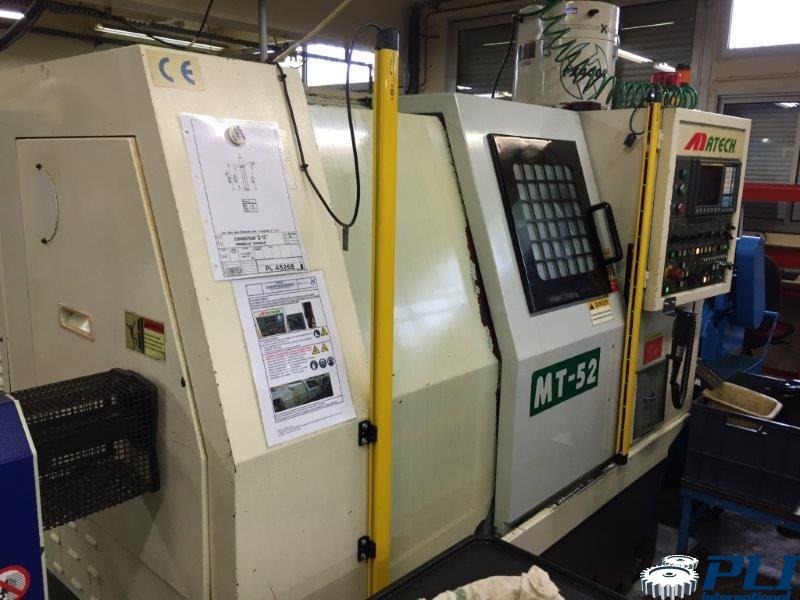

Technical characteristics :
CN FANUC
Diameter over the bench: 460 mm
Diameter over the trolley: 300 mm
Distance between centres: 435 mm
Turning length: 350 mm
Max. turning diameter: 300 mm
Spindle nose A2-6
Diameter of spindle passage: 52 mm
Spindle motor power: 7.5 kW
Spindle speed: 48-4800 rpm
Stroke of X : 150+30 mm
Rapid advance of X: 20 mm/min
Stroke of Z: 350 mm
Rapid advance of Z: 24 mm/min
Tailstock Type MT-4 :
Equipment :
80 L tank
Hydraulic pump motor 2.2 kW
VDI 30 12-position turret
