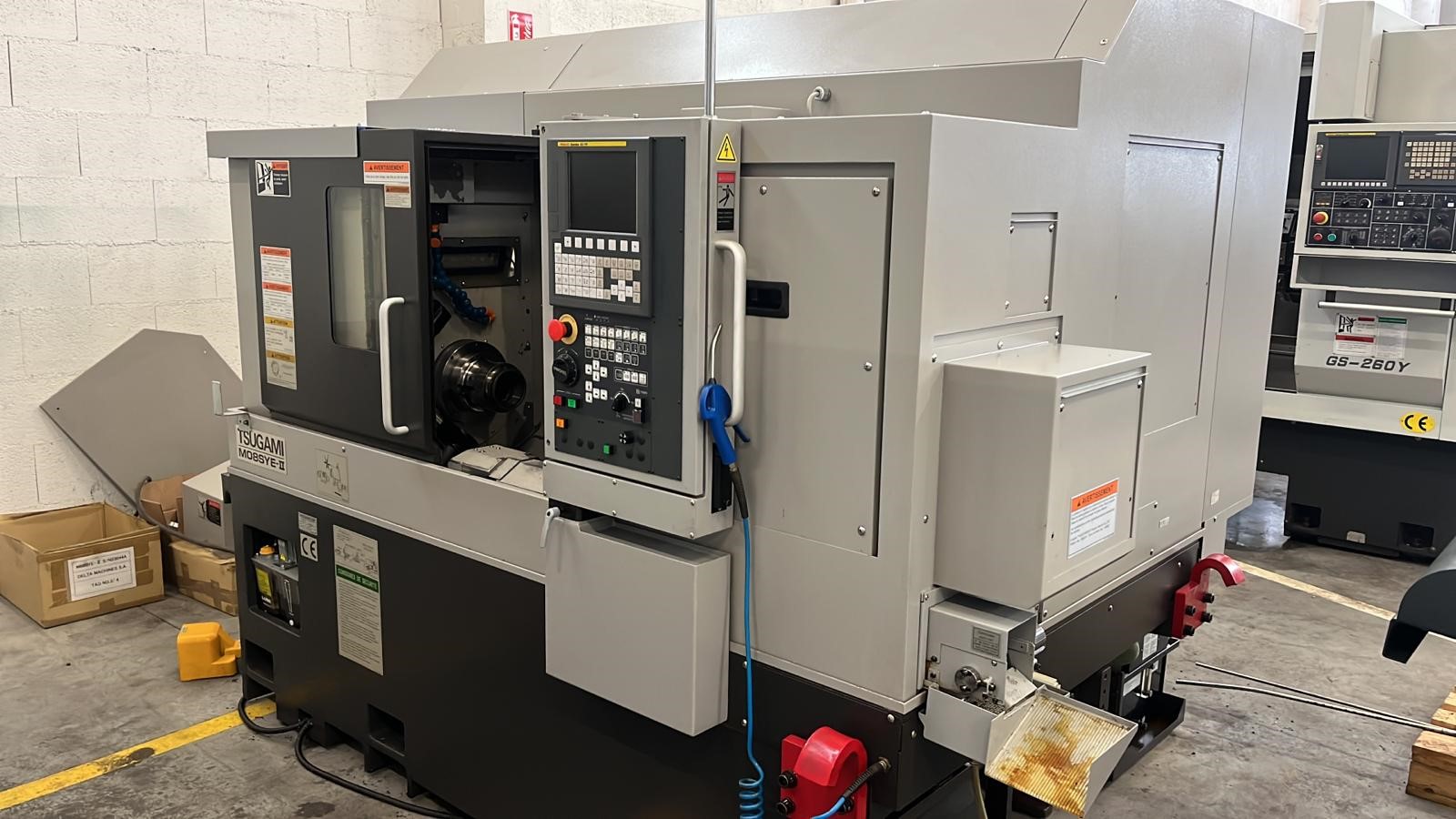

CNC LATHE TSUGAMI M08SYE-II year 2017 – 5 AXIS FANUC

Lathe
Brand : TSUGAMI
Model : M08SYE-II
Year : 2017
Storage area : Saint etienne

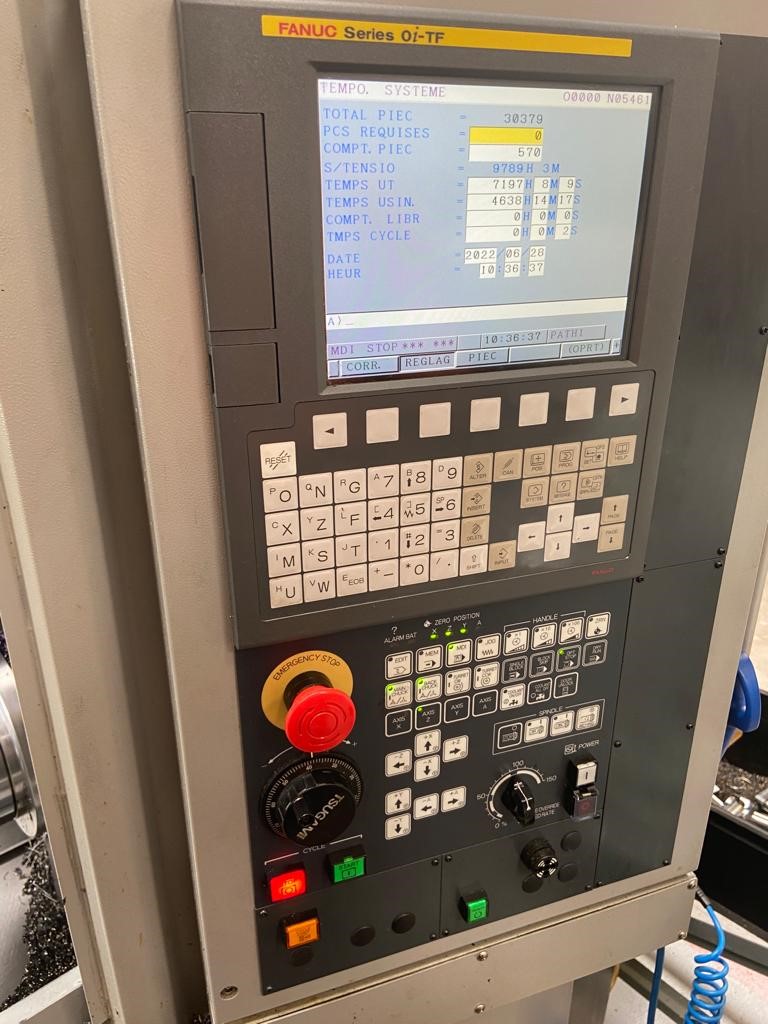

CONTROL FANUC Oi-TF with manual guide

MAXIMUM CUTTING DIAMETER 380 mm
BAR CAPACITY 73 mm
DISTANCE BETWEEN SPINDLES 400 mm

SPINDLE MOTOR POWER 7,5/11KW
SPINDLE NOSE  A2-6
SPINDLE SPEED 4500 rpm
SUB SPINDLE BORE 59 mm
SUB SPINDLE MAX SPEED 4500 rpm

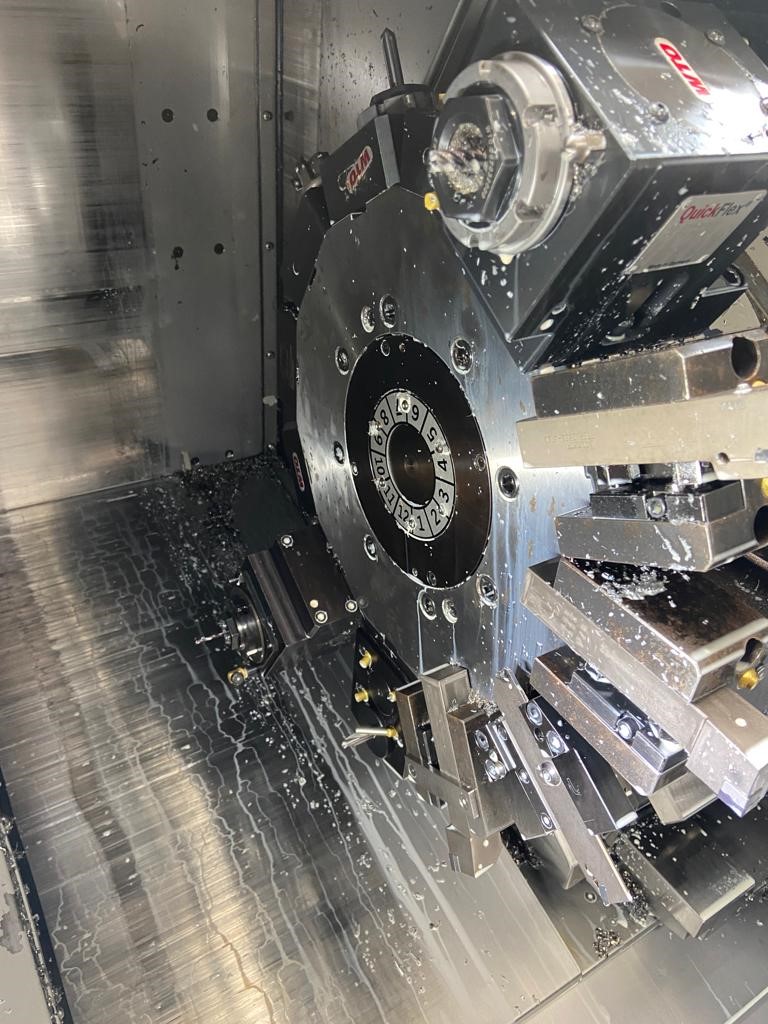

TURRET POSITIONS 12 STATION
TOOL SIZE 25 X 25 mm
MILLING RPM 5000

RAPID FEEDRATES XZYA: 24X27X12X30 m/min

C AXIS   0.001 DEGREE
X AXIS TRAVEL 221 mm
Y AXIS TRAVEL +50/-50 mm
Z AXIS TRAVEL 400 mm

MACHINE DIMENSIONS 2470 X 1850 X 1930 mm
MACHINE WEIGHT 5600 kg

Chip convoyer
Tool probe
Tools

With Bar feeder LNS QLS80 S2

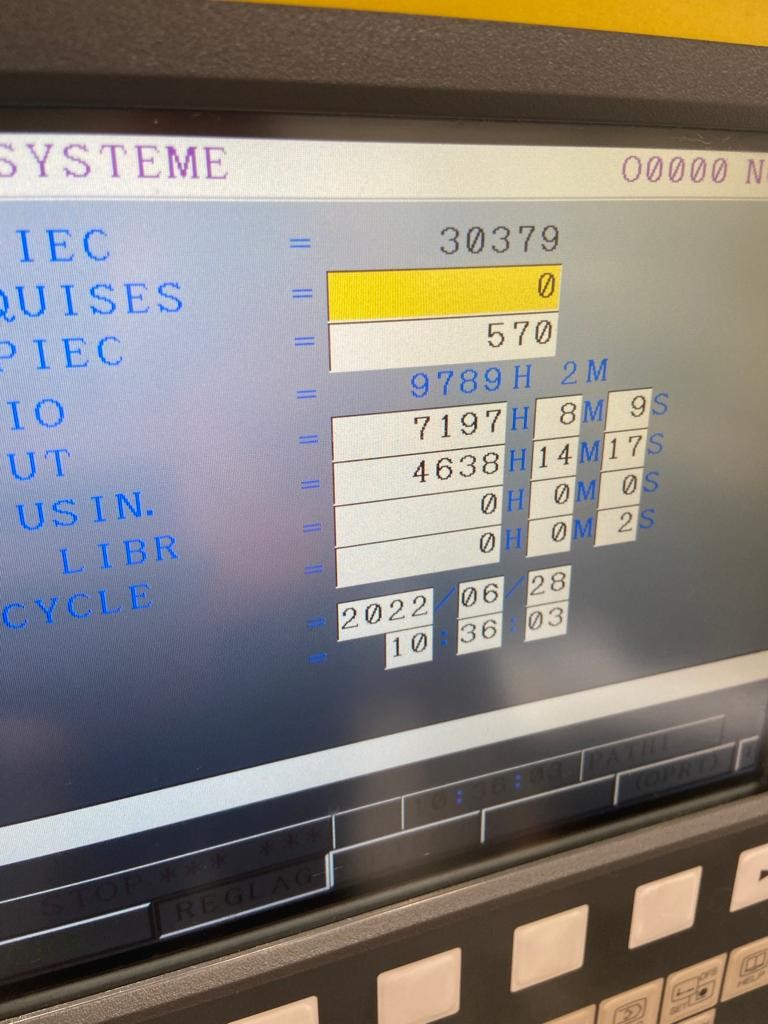

Cutting time 4638 Hours

Technical description without guarantee, only as an indication.
