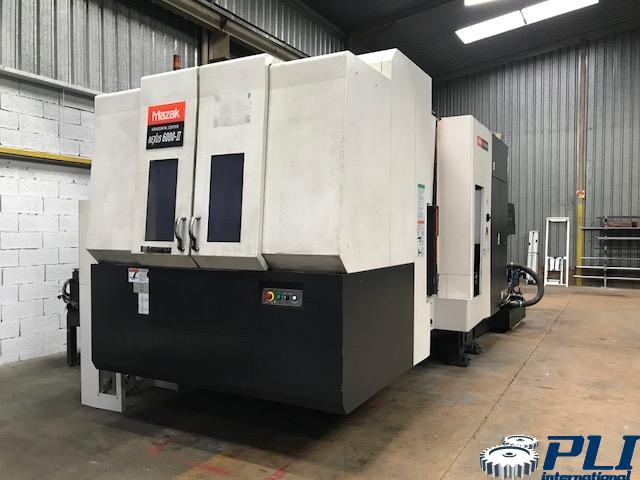

Technical specifications
:
Strokes X/Y/Z strokes : 800 x 800 x 800 mm
Distance from top of pallet to spindle centre : 100 – 900 mm
Distance centre pallet / spindle nose : 150 – 950 mm
Table Pallet size : 500 x 500 mm
Max. weight admitted on the table : 1000 kg
Maximum dimensions of parts : ø 900 mm x 1000 mm
Spindle speed : 35 to 10 000 rpm
Number of speed range : 2
Cone : 50
Spindle motor : 37 kW
Rapid feeds : 60 000 mm/min
Feed rates : 1 – 60 000 mm/min
Automatic tool changer
Renishaw Tool Probe
Tool taper : 50
Tool magazine capacity : 120 tools
Max. Ø tool 125 mm
Max. Ø tool pockets adjacent empty Size : 250 mm
Max. tool length Size : 500 mm
Max. tool weight : 30 kg
