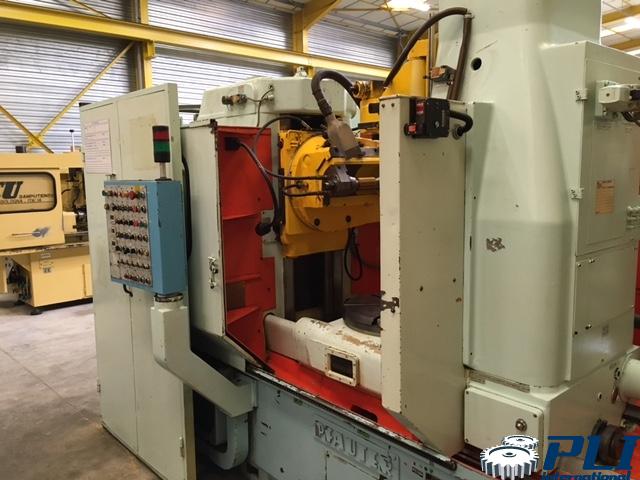

Machine from the aeronautical industry
Technical specifications:
Max. module: 10 mm
– Maximum diameter of the part: 630 mm
– Table diameter: 550 mm
Table bore: 125 mm
Distance table – tailstock min 595 mm
Distance table – tailstock max : 1270 mm
Minimum number of teeth: 8
Maximum diameter of the cutter: 192 mm
Max. length of the cutter: 230 mm
Min/max cutter/workpiece centre distance: 50/425 mm
Max. milling cutter displacement: 200 mm
Weight: about 9 tons
Dimensions: 6110 mm * 3110 mm * 3500 mm
Equipment :
Special tip wedge with 3 button bezel
Fully enclosed
Morse taper 5
Strawberry trees
Division wheel
