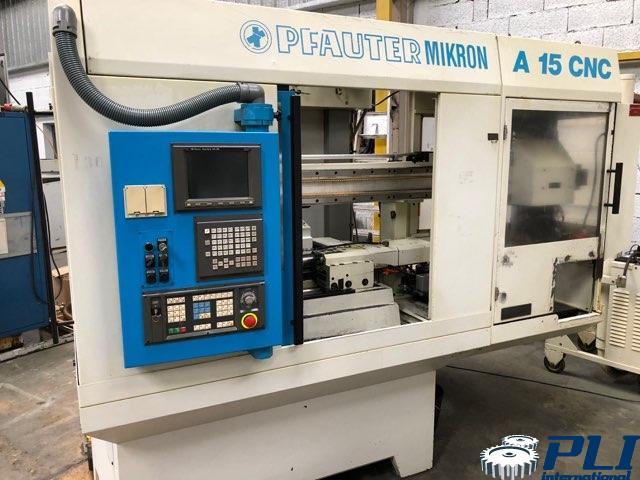

MIKRON A 15 CNC
Control FANUC 16M/B
Year 1997
Maximum module: 2.5
Number of teeth: 1- 999 dts
Max. workpiece diameter manual/auto: 100 / 60 mm
Max. workpiece length manual/auto: 300 / 200 mm
Tool dimensions of mother cutter diam/long: 63/70 mm
X axis travel: 66 mm
Z axis travel (milled length): 150 mm
Y-axis travel – shifting: 100 mm
Rotation of milling head -axis A: +/- 50
Reciprocating movement of the spindle sleeve: 110 mm
Feed rate X and Z axis: 0-6000 mm/min
Feed speed Y axis: 0-4000 mm/min
Rotational speed range of the milling cutter (B axis): 200 – 4000 rpm
Workpiece rotation speed range (C axis): 0-500 rpm
Tailstock stroke: 205 mm
Spindle bore: 32 mm
Power : 12Kva
Machine dimensions: 1858 x 2145 x 2255 mm
Weight: 5500kg
