TECHNICAL CHARACTERISTICS
– Number of axes: 7
– Number of pins: 1
MAIN SPINDLE
– Spindle nose: A2-8
– Spindle power: 30 [kW]
– Spindle speeds: 3000 [tr/min]
– Maximum bar diameter: 90 [mm]
– Maximum machinable diameter: 730 [mm]
– Maximum diameter on the bench: 730 [mm]
– C axis indexing accuracy: 0.001 [°]
TURNING/MILLING SPINDLE
– Stroke X/Z: 750/ 1550 [mm]
– Stroke Y: +/- 210 [mm]
– B axis travel: +/- 120 [°]
– B axis indexing accuracy: 0.001 [°]
– Tool type: CAPTO C6
– Spindle speeds: 12000 [tr/min]
– Spindle power : 18.5 [kW]
TOOL CHANGER
– Type of tool changer: Loader arm
– Tool magazine capacity: 100
COUNTER POINT
– Distance between points: 1650 [mm]
POWER SUPPLY
– Supply voltage: 400 [V]
DIMENSIONS
– Floor dimensions : 5400 X 3200 [mm]
– Machine height: 2930 [mm]
– Machine weight : 25000 [kg]
EQUIPMENT

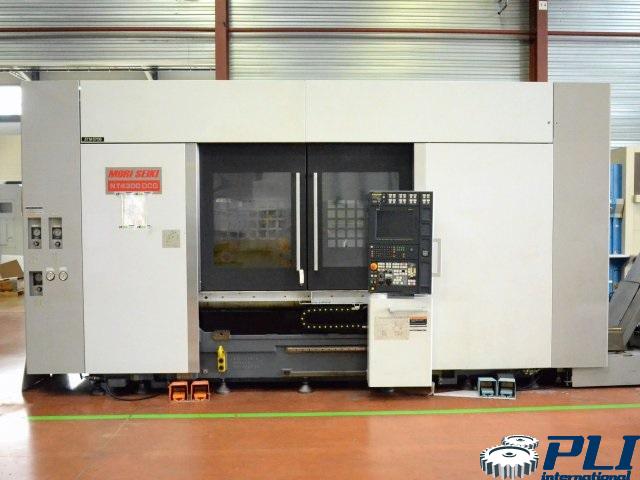

– CNC : MORI SEIKI MSX-701 III (Fanuc 31 iA)
– Conversational
– 3-color status lamp
– Sprinkler tray
* with high pressure pump: 40 [bars]
* oiler
* Watering of the spindle center
– Chip conveyor
– Oil mist vacuum cleaner
– Tool Probe
– OMP part sensor
– Transformer
– Digital V-bezel
– Rohm 3-jaw chuck 315 mm
Technical description without guarantee, only for information purposes
