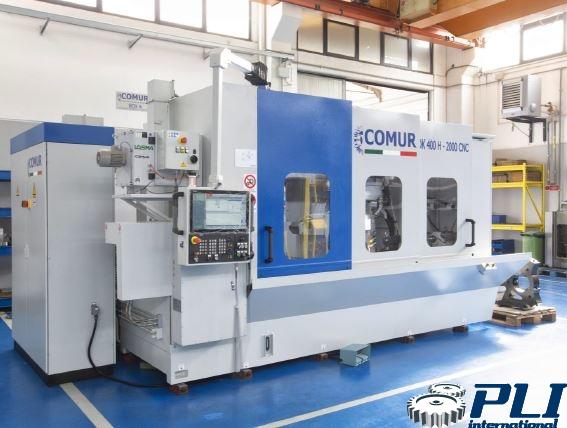

New Gear hobbing Machine – COMUR DK 400H-2000 CNC – 6 axis
CNC : SIEMENS 840D SL
Max. nominal module mm 10
Max. workpiece external diameter mm 400
Max External diameter 165mm
Max Length 220mm
Hob Arbors
Allowed diameters mm 22/27/32/40/50/60
Type (mechanical) Morse 5
Travels
Min/Max distance between Hob/Table C/L along X-Axis mm30/245
Min/Max distance between Hob C/L and Table surface along Z-Axis mm445/2460
Min/Max Y Travel (hob shifting) mm65/255
Hob Head
Max swivel angle +40° / -40
Worktable
Diameter (external) mm220 h6
Diameter of through hole mm155 h6
Counter Support – Tailstock
Height of live center mm260
Max travel mm90
Diameter of center mm35
Thrust (hydraulic) DaN150
