| Workpiece data : | |
| Workpiece diameter max : | Ø 270 mm |
| Normal module range : | 1.5 – 6.5 mm |
| Tooth width (max.) : | 58 mm |
| Smallest/largest spiral angle : | 0°/60° |
| Smallest/largest number of teeth : | 6/180 |
| Smallest/largest gear ratio : | 1:1/1:10 |
| Tool data : | |
| Cutter head radius/cutter head diameter : | 39 –105 mm 3.25“ – 7.5“ |
| Cutter head spindle (A axis) : | |
| Seating diameter: Gleason outer cone No. 14; 1:24 : | Ø 58.227 mm |
| Cutter head spindle speed (max.) : | 1,500 rpm |
| Workpiece spindle (B axis) : | |
| Seating diameter: Oerlikon outer cone 1:4 : | Ø 140.11 mm |
| Seating diameter: Oerlikon inner cone No. 39; 1:19,764 : | Ø 99.258 mm |
| Workpiece spindle opening : | Ø 90 mm |
| Workpiece spindle speed (max.) : | 1,500 rpm |
| Machine dimensions : | 3,670 x 2,025 x 2,050 mm |
| Net weight approx. : | 11 200Kg |
| Options : | |
| Arcon® Wälzverfahren : | |
| Arcon® Formverfahren : | |
| Gleason Einzelteil-Wälzverfahren : | |
| Gleason Einzelteil-Formverfahren : | |
| Tester Korrekturen : | |
| Zahndickenkorr. : | |
| Machine software for continuous indexing (face hobbing) : |
SOLD

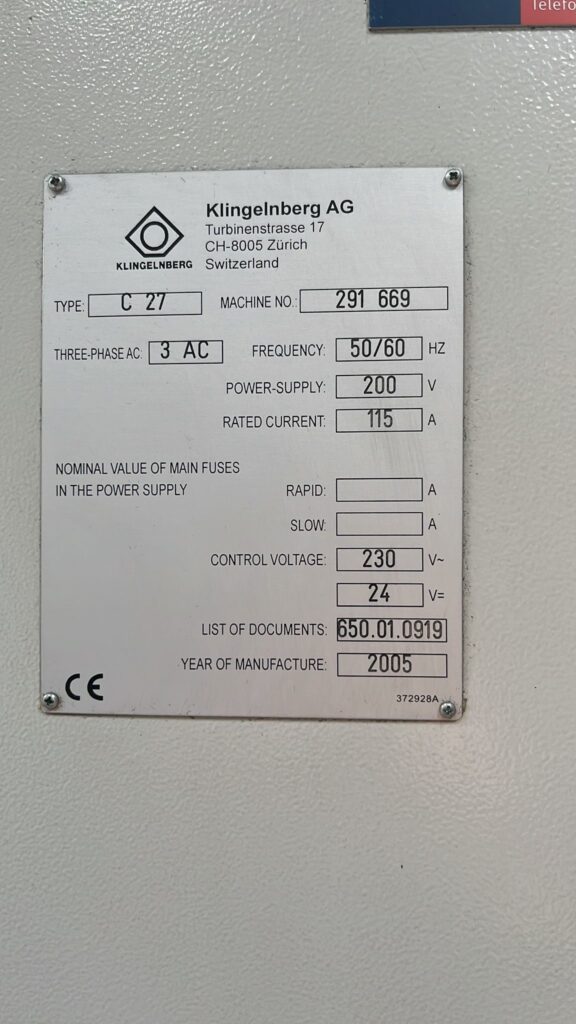

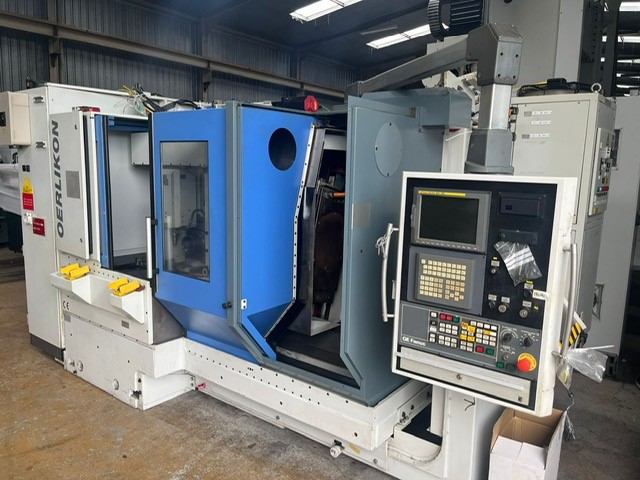

OERLIKON BEVEL Gear Cutting Machine C 27
| Brand : | OERLIKON |
| Model : | C27 |
| Year : | 2005 |
