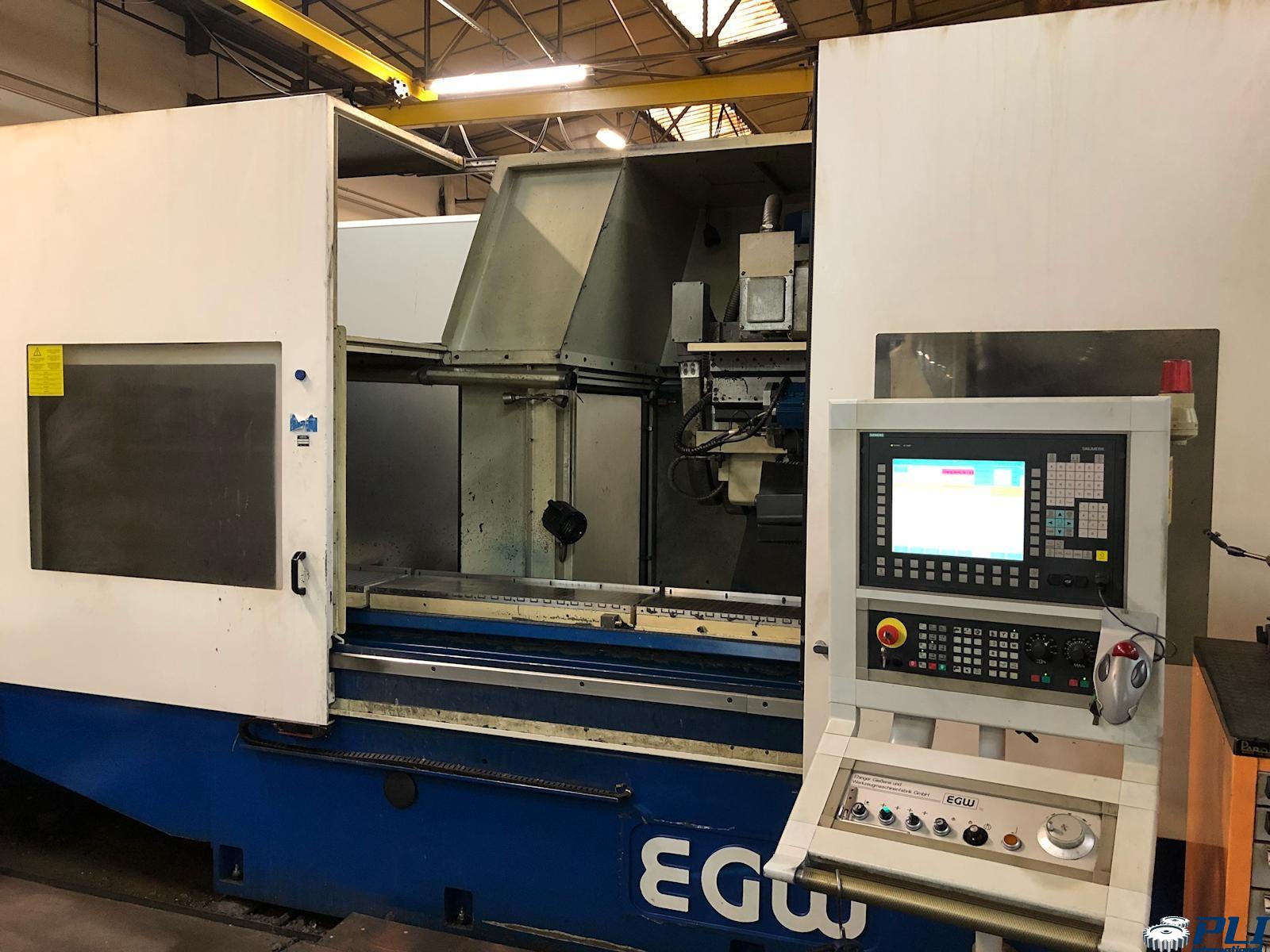

Rack and pinion grinding machine
CNC SIEMENS 840D
Year: 2003
Brand: EGW
Model: UTSM 500 CNC
Machining capacity :
– X axis: 3100 mm
– Y axis: 500 mm
– Z axis: 400 mm
table with 3 magnetic trays
Load capacity : 3500 Kg
Dimensions: 550×3450 mm
Travel speed: 0 to 20,000 mm/min
Threaded spindle pitch: 20 mm
Grinding wheel head:
Grinding wheel hub: 50.8 mm
Power: 27.5 kW
Three-phase spindle motor
Spindle speed: 1000/5000 rpm
Grinding wheel width: 15-80 mm
Grinding wheel diameter: 170/300 mm
Grinding capacity : module 0.5 to 16
Head tilt: +/- 30 degrees
3-axis CNC profile straightening device with diamond wheel
