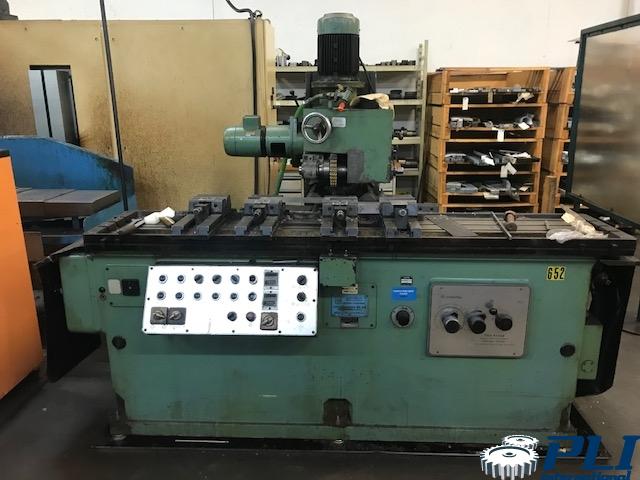

– Largest module that can be milled from steel Module 8
with pre-milling module 10
– Largest module that can be milled from cast iron Module 10
-Maximum length of cooling in one go 1750 mm
-Table size 460 x 2100 mm
-Minimum distance of the milling spindle above the table 130 mm
-Maximum distance of the milling spindle above the table 290 mm
-Maximum milling stroke 260 mm
-Feed of the milling carriage adjustable from 0 to 500 mm
-Fast return speed 3m/min
-Number of revolutions of the cutter shaft 29-178 rpm
-Orientation of the milling spindle head to the left 80°.
-Tilting of the milling cutter carriage in both directions 30°.
-Orientation of the cutter head to the right 10°.
-Diameter of the cutter shaft between the stops 27 – 40 mm
-Maximum milling width 100 mm
-Diameter of the milling cutter shaft in front of the interchangeable stop 22 – 32 mm
-Maximum milling width in front of the stop 50 mm
-Minimum cutter diameter 115 mm
-Maximum milling diameter 160 mm
-Pitch of the lead screw module 4
-Motor power of the milling cutter shaft 2,2 kw
