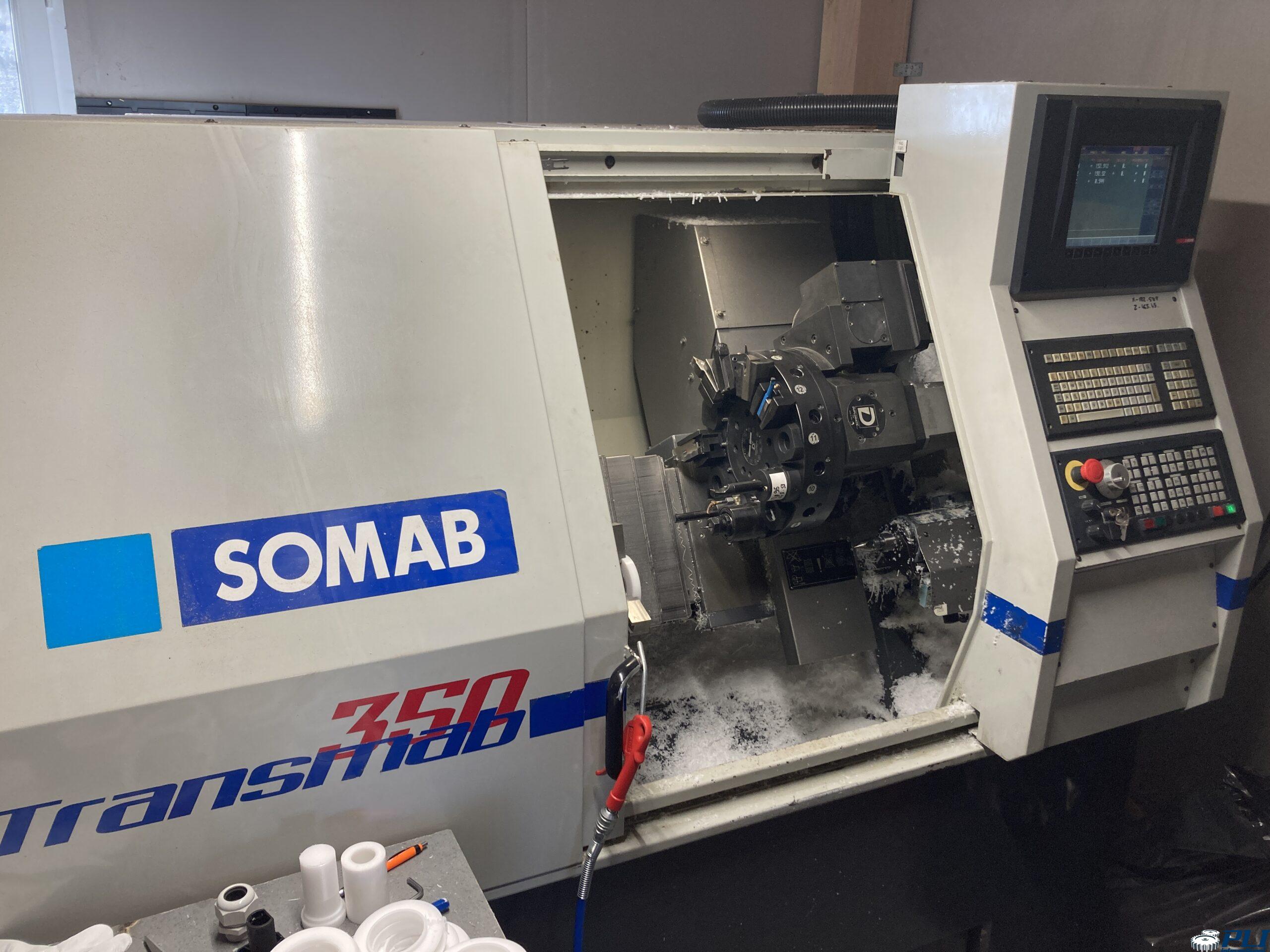

Number of axes: 3 machine with C axis and rotating tool
Diameter over the bench: 410 mm
Diameter above the slide: 290 mm
Cross X stroke: 200 mm
Longitudinal Z-stroke: 550 mm
Length of the spindle nose/backward CP tip: 627 mm
Spindle nose A1 6” ISO
Spindle bore: 52 mm
Maximum spindle speed: 5000 rpm
Spindle motor : 9/12.5 kW
Pneumatic chuck diameter 160 mm with 42 mm passage
12-position turret
VDI 30 tool holder, all positions can be used with a rotating tool holder, power 4kw, speed 5000 rpm
ISO programming Num 1060 control
Number of hours under power: 22,965 hrs or approximately 8,000 spindle hours
Numerous fixed and 2 rotating radial and axial tool holders
Size: 2015 x 1600 x 1870 mm
Weight: 3500 kg
Technical description without guarantee, only as an indication.
