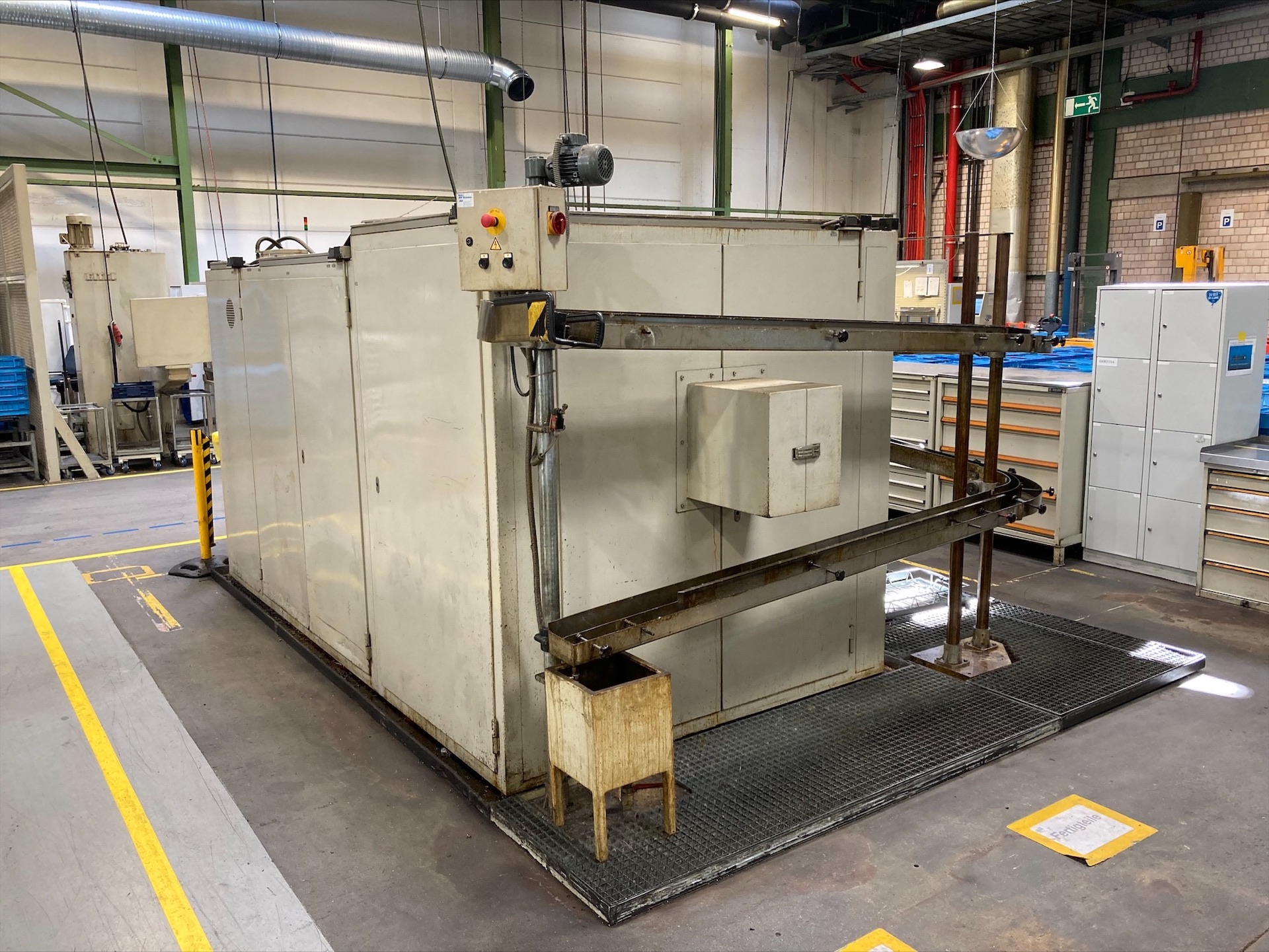

Spline rolling Machine – GROB ZRM9

Spline roller - Cold rolling
Brand : GROB
Model : ZRM9

Max. workpiece length (Lw) : 1700 mm
Max. length of gearing (Lz) : 1200 mm
Maximum tooth diameter : 120 mm
Max. workpiece diameter : 470 mm
Possible number of teeth with continuous process : 12-96
Possible number of teeth with interrupted process : 10-30
Feed rate infinitely variable : 40-240 mm/min
Rapid movement : 2400 mm/min
Power : 18.5 kW
Weight : 7000 kg
Dimensions : 2840 x 1700 x 1380 mm
