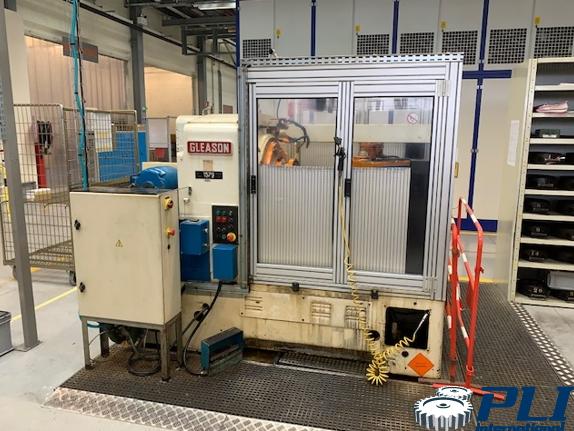

Make : Gleason
Model : 106
Max. Cone Distance: 107 mm
Max. Pitch Diameter (30° spiral angal) :
10 to 1 ratio : 215 mm
2 to 1 ratio : 190 : mm
1 to 1 ratio : 152 mm
Max. face width: 31.7 mm
Max depth : 15.8 mm
Diametral pitch, coarsest : 6.35 Mod.
Diameter of taper hole at large end: 23 mm
Taper per foot : 15.5 mm
Depth of taper: 152.4 mm
Diameter of hole through spindle: 61.9 mm
Work Head Settings
Offset above center, maximum :76.2 mm
Offset below center, maximum: 76.2 mm
Distance from machine center to nose of spindle (maximum) : 31.7 mm
Main motor: 1500 RPM
Hydraulic motor : 1500 RPM
