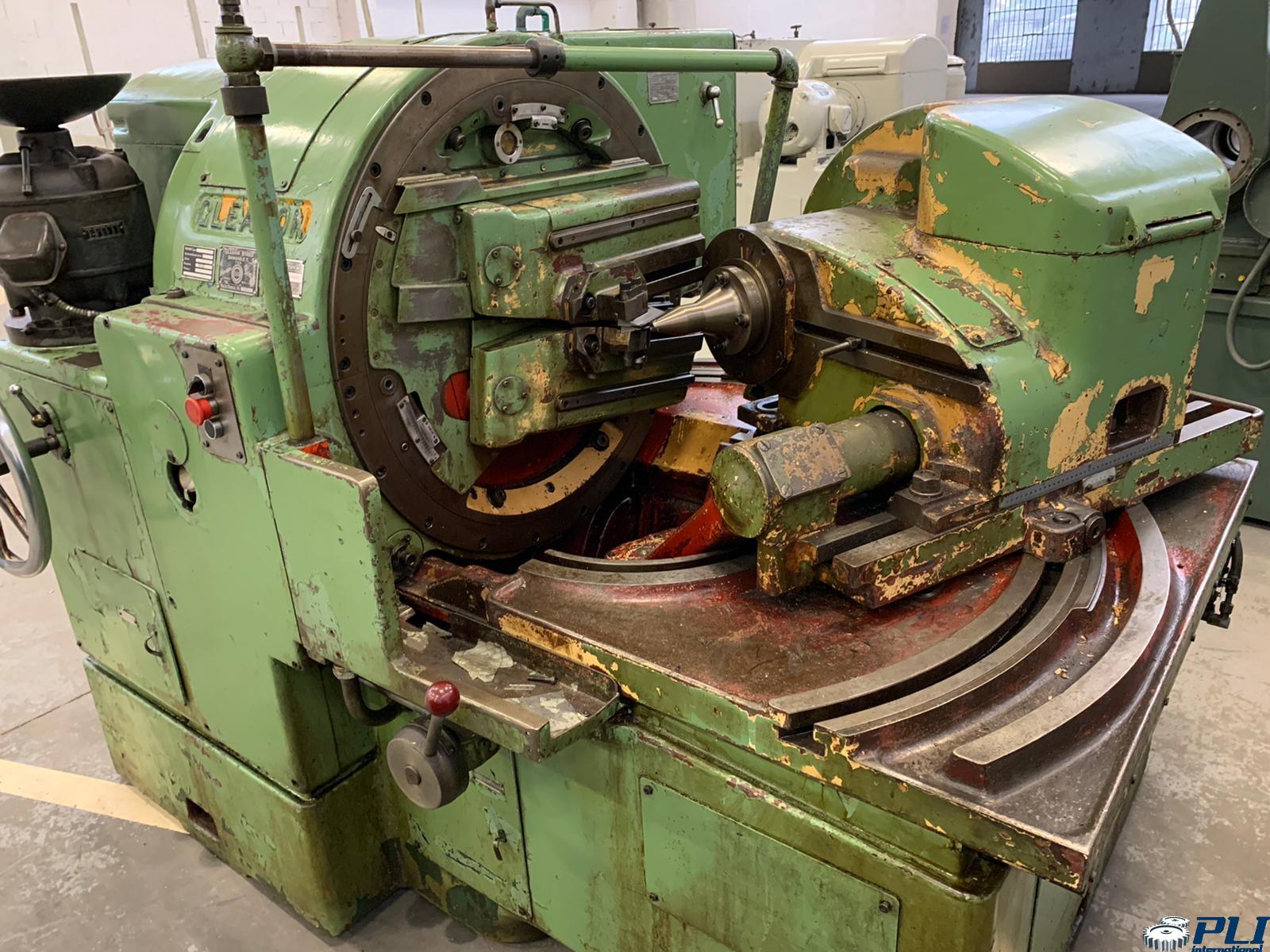

Bevel gear generator GLEASON No 14
Manufacturer: Gleason Works
Made in: USA
Capacity
Cone distance:
-Max: 805 mm
-Min: 0
Pitch angle (max.) shafts at 90°: 84°18
Pitch angle (min.): 5°42′.
Extreme ratio: 10:1
Diametral pitch (coarsest): 8.5 Mod.
Index range: 5 to 100 inclusive and most numbers to 200
Pitch diameter:
-Ratio: 10:1
–Face: 25 mm
–Cone distance: 283 mm
–Largest pitch diameter of gear: 565 mm
–Largest pitch diameter of pinion: 57 mm
–Face: 51 mm
–Cone distance: 295 mm
–Largest pitch diameter of gear: 591 mm
–Largest pitch diameter of pinion: 59 mm
–Face: 89 mm
–Cone distance: 305 mm
–Largest pitch diameter of gear: 610 mm
–Largest pitch diameter of pinion: 64 m
-Ratio: 1:1
–Face: 25 mm
–Cone distance: 283 mm
–Largest pitch diameter of gear: 400 mm
–Largest pitch diameter of pinion: 400 mm
–Face: 51 mm
–Cone distance: 295 mm
–Largest pitch diameter of gear: 419 mm
–Largest pitch diameter of pinion: 419 mm
–Face: 89 mm
–Cone distance: 305 mm
–Largest pitch diameter of gear: 432 mm
–Largest pitch diameter of pinion: 432 mm
Work spindle
Diameter of taper hole at large end: 100 mm
Taper per foot: 15 mm
Depth of taper: 150 mm
Diameter of hole through: 78 mm
Spindle nose to machine center: 64 mm to 381 mm
Speeds and feeds
Cutter speeds (strokes per minute):
-60 cycle: 64 to 495
-50 cycle: 51 to 420
Feeds (seconds per tooth):
-60 cycle: 10 to 131
-50 cycle: 11 to 128
Electrical equipment
Main motor: 3 HP, 1800 rpm, 1800 rpm (60 cycle), 1500 rpm (50 cycle)
Hydraulic pump motor: 1.5 HP, 1200 rpm (60 cycle), 1000 rpm (50 cycle)
Cutting oil pump motor: 0.5 HP, 3600 rpm (60 cycle), 3000 rpm (50 cycle)
Miscellaneous
Floor space: 1420 x 410 mm
Net weight: 7850 kg
