workpiece diameter 2 – 250 mm
threading length 450 mm
thread pitch 0,3-100 mm
clamping length max. 1080 mm
indexing 10 Modul
workpiece turning speeds 0,4-160 U/min
grinding wheel diameter 275 – 350 mm
grinding wheel turining speeds 1700-2540 U/min
spindle bore diameter 45 mm
relief grinding stroke stepless 0,03-8 mm
pitch angle 40 °
electrics – voltage/frequency 380/50 V/Hz
total power requirement 15 kW
weight of the machine ca. 5,0 t
dimensions of the machine ca. 3,0 x 4,0 x 2,0 m
Accessories
– Internal Thread-Grinding Unit
– complete covering
– set of change gears,

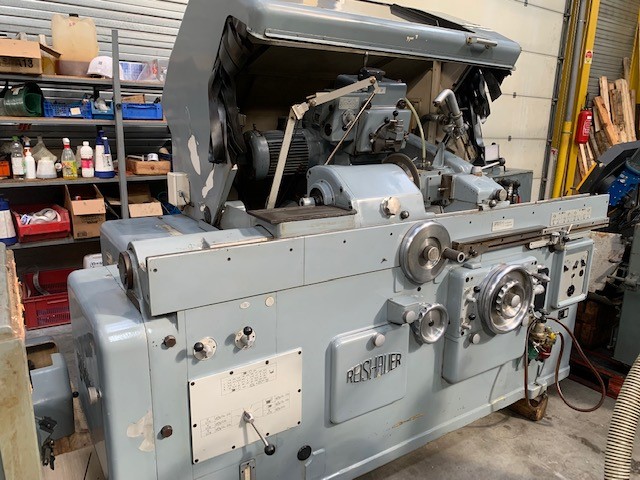

– tooling and accesssories etc. according to pictures
