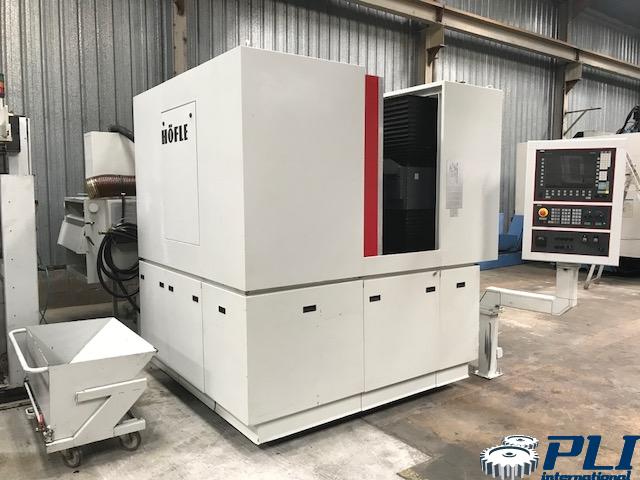

(Cylindrical) gear outer diameter (max.) Ø 400 mm
(Cylindrical) gear root circle diameter (min.) Ø 10 mm
Axial stroke length 260 mm
Center distance above table (min. – max.) 325 – 745 mm
Profile height (max.) 35 mm 35/25 mm 35/25/15 mm
Module (min. – max.) 0.5 – 15
Pressure angle without restriction
Swivel angle +/- 45
Grinding wheel diameter (max.) Ø 300 mm
Grinding wheel diameter shoulder (min.) Ø 80 mm
Grinding wheel width (max.) 40 mm
Grinding spindle drive (max.) 15 kW
Stroke speed of tool slide (max.) 6 m/min (12 m/min)**
Table diameter Ø 180 mm
Table load (max.) 100 kg
Table hole (diameter x depth) Ø 75 x 40 mm
Table rotation speed (max.) 85 rpm
Dressing roll (diameter x width) Ø 160 x 13 mm
Machine dimensions (L x W x H) 4,600 x 5,100 x 2,700 mm
Net weight approx. 10,000 kg
