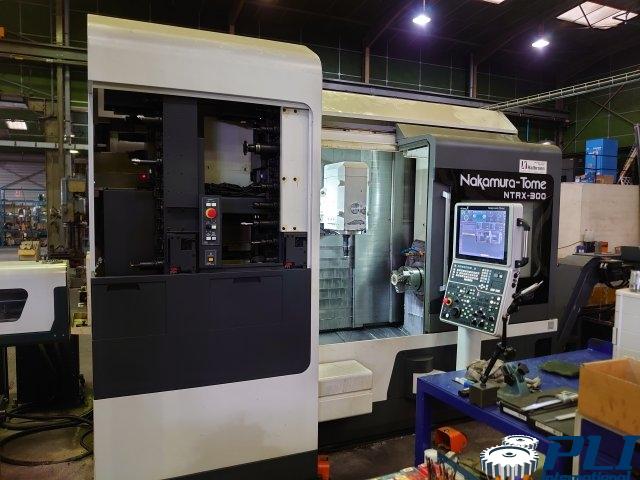

– Number of axes: 5
– Number of pins: 2
MAIN SPINDLE
– Spindle nose: A2-8
– Spindle power: 22 [kW]
– Spindle speeds: 4500 [tr/min]
– Maximum bar diameter: 80 [mm]
– Maximum machinable diameter: 640 [mm]
– Maximum diameter on the bench
– C axis indexing accuracy: 0.001 [°]
COUNTERBACK
– Spindle nose: A2-6
– Spindle power: 15 [kW]
– Spindle speeds: 4500 [tr/min]
– Maximum bar diameter: 65 [mm]
– C axis indexing accuracy: 0.001 [°]
– Race: 1100 [mm]
– Spindle/counter spindle distance: 1350 [mm]
TURNING/MILLING SPINDLE
– X/Z stroke: 700/1125 [mm]
– Y stroke: +125/-125 [mm]
– B axis travel: -120/+105 [°]
– B axis indexing accuracy: 0.001 [°]
– Tool type: CAPTO C6
– Spindle speeds: 8000 [tr/min]
– Spindle power : 18.5 [kW]
TOOL CHANGER
– Type of tool changer: Umbrella
– Tool magazine capacity: 80
– Tool change time: 2.5 [sec]
POWER SUPPLY
– Supply voltage: 400 [V]
– Installed capacity: 90 [kW]
DIMENSIONS
– Floor dimensions : 4460X2670 [mm]
– Machine height: 2615 [mm]
– Machine weight : 18000 [kg]
MACHINE HOURS
– Working hours: 4686 [h]
Equipment
– CNC : Fanuc 31i-B5 NT-Smart X
– Conversational
– Sprinkler tray
* with high pressure pump: 20 [bars]
* Watering of the spindle center
– Chip conveyor
– Spindle cooling
– Parts recuperator
– Transporter: LNS Quick Load Servo 80 S2
– Electrical transformer
– 3-jaw chuck: 2
