| CNC : | Matrix |
| Turning length : | 1000 mm |
| Turning diameter : | 660 mm |
| Turning diameter over cross slide : | 660 mm |
| Chuk diameter : | 10" |
| Spindle speed : | 5000tr/min |
| Spindle noze : | A2-6" |
| Spindle indexation : | 0,0001° |
| Spindle bore : | 51 mm |
| Miling spindle : | |
| Miling spindle speed : | 12000tr/min |
| Maximum mill diameter : | 100 mm |
| Travels : | |
| Axis X : | 580 mm |
| Axis Y : | 160 mm |
| Axis Z : | 1045 mm |
| Axis B : | 225° |
| Axis C : | 360° |
| Options : | |
| : | Swarf convoyor |
| : | ATC 120 tools Capto C6 |
| CTS : | 15 bars |
| : | Paper filtration |
| : | Oil mist collector |
SOLD

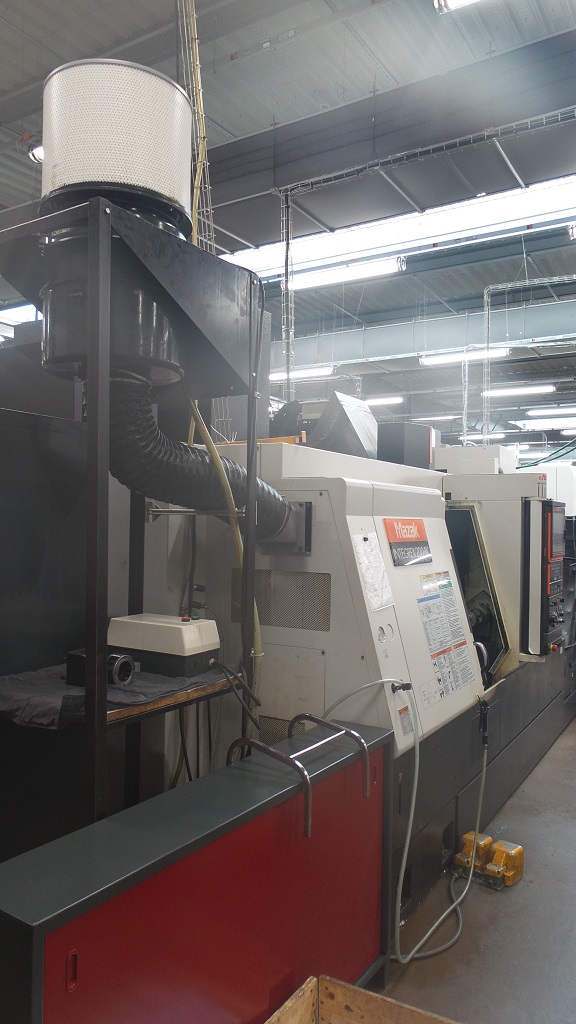

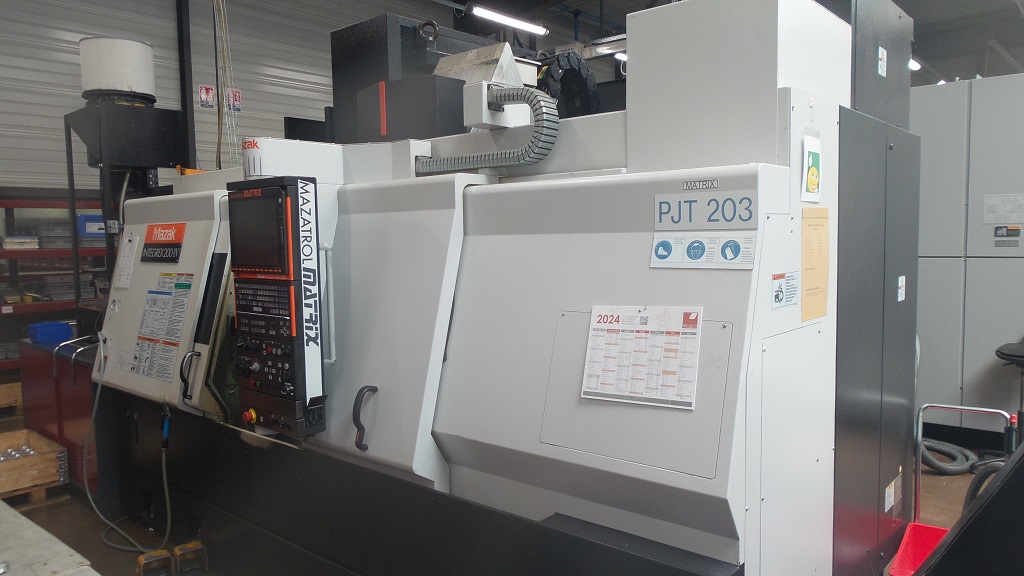

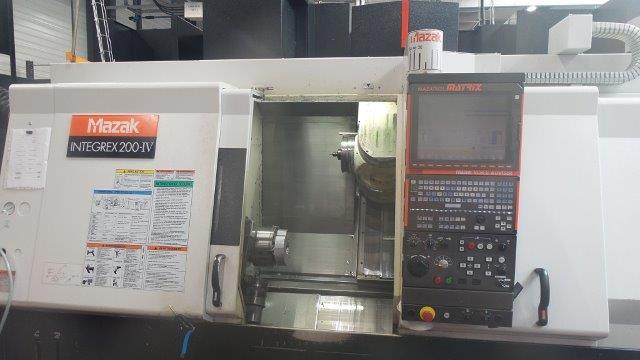

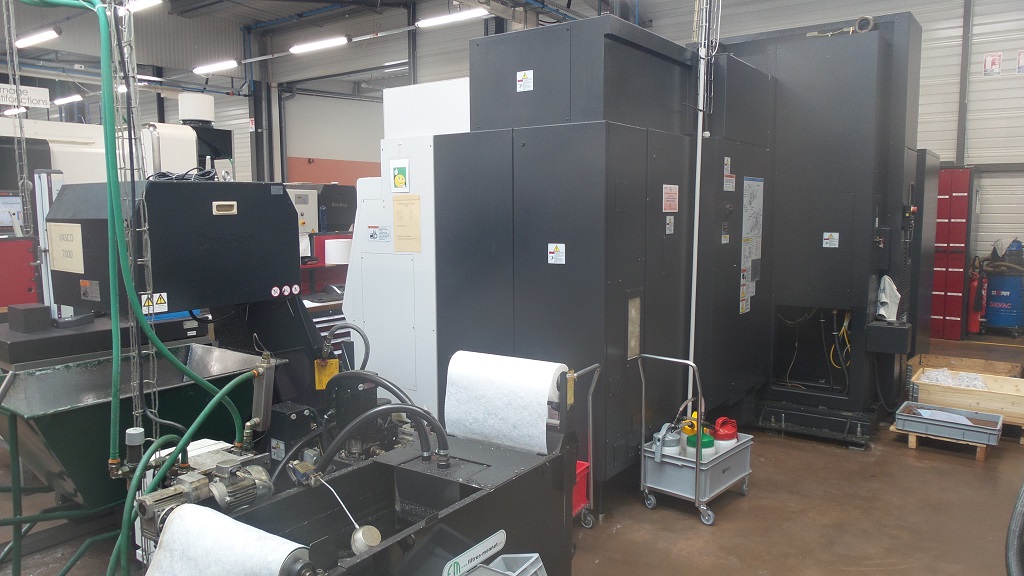

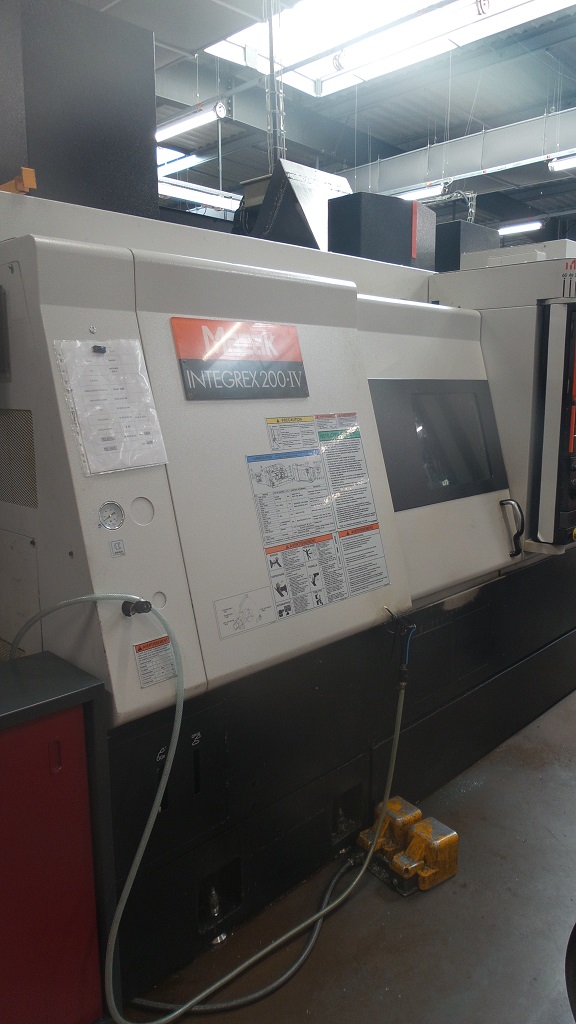

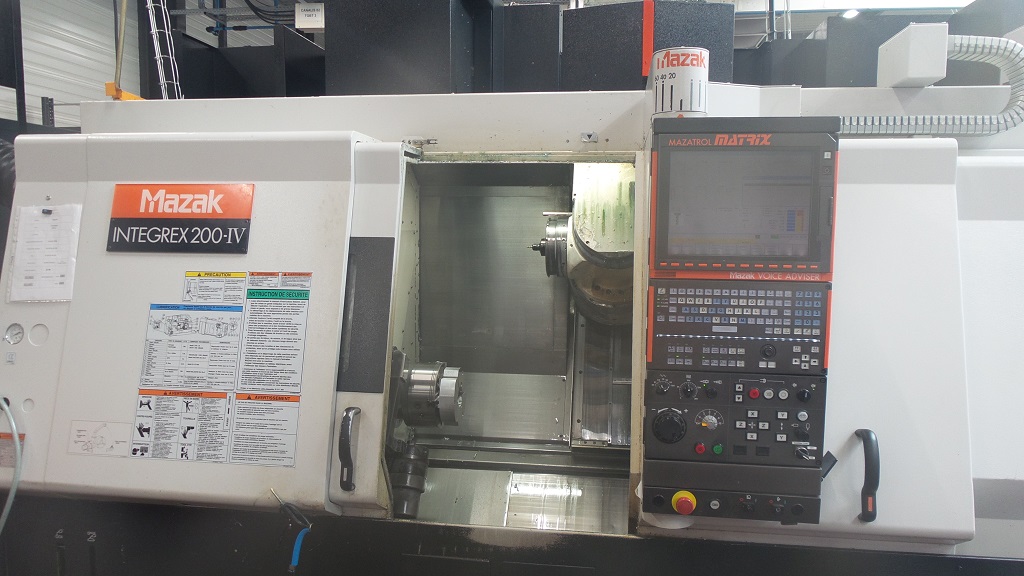

Turning and miling center – MAZAK INTERGEX 200IV
| Brand : | MAZAK |
| Model : | INTEGREX 200IV |
| Year : | 2008 |
