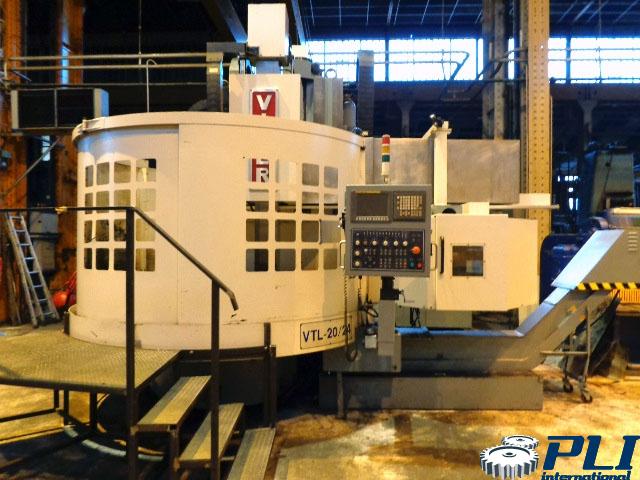

CNC FANUC Oi TC
Tool magazine 18 positions, tool length 450 mm
Table top diameter 2,000 mm
Max. diameter of passage and turning 2 400 mm
Max. height 1,500 mm turning circle
Max. weight admitted to the tray 20 T
Max. torque of the plate 24 600 Nm
Stroke X axis 1835 mm
Z-axis travel 1000 mm
Runner cross-section 230 x 230 mm
Platter speed (2 ranges) 0 to 55 and 53 to 200 rpm
Rapid feed X axis 12,000 mm/min
Rapid feed Z-axis 10 000 mm/min
Vertical travel of the crossbar 800 mm
Power of the plate motor 40/50 HP
Tool sensor
Chip conveyor
Dimensions 5 400 x 4 300 x H 5 750 mm
Approx. weight 38 T
