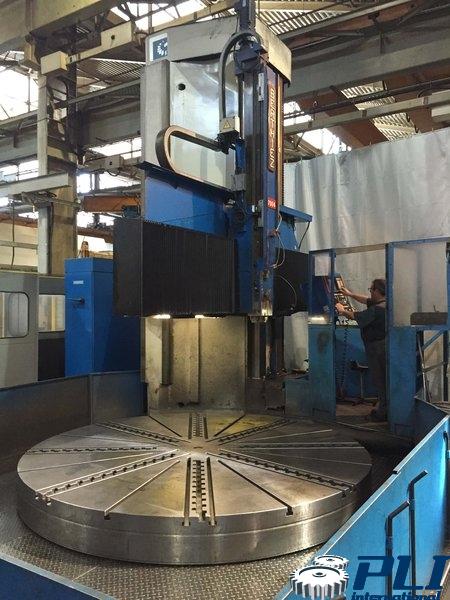

Reconstructed and retrofitted in 1999
CN: NUM 1062 T
Table top diameter 3000 mm
Max. turning diameter 6,300 mm
Max. turning diameter to the centre 4,000 mm
Max. machining height 3,000 mm
Vertical runner stroke 1,250 mm
Horizontal travel of the carriage on crossbar 2450 mm
Carriage tilt 45° and 30
Load capacity on platform 40 T
Turntable speeds 1.25 – 80 rpm
Main motor power 70 kW
Lateral carriage
CAPTO C8 toolholder system
Electronic handwheel
HEIDENHAIN measuring rules for X / Z / W axes (crosshead on column)
SPRAYMIST watering system
Motorized operator platform, vertically and horizontally mobile
1 set of 4 jaws
Complete casing
