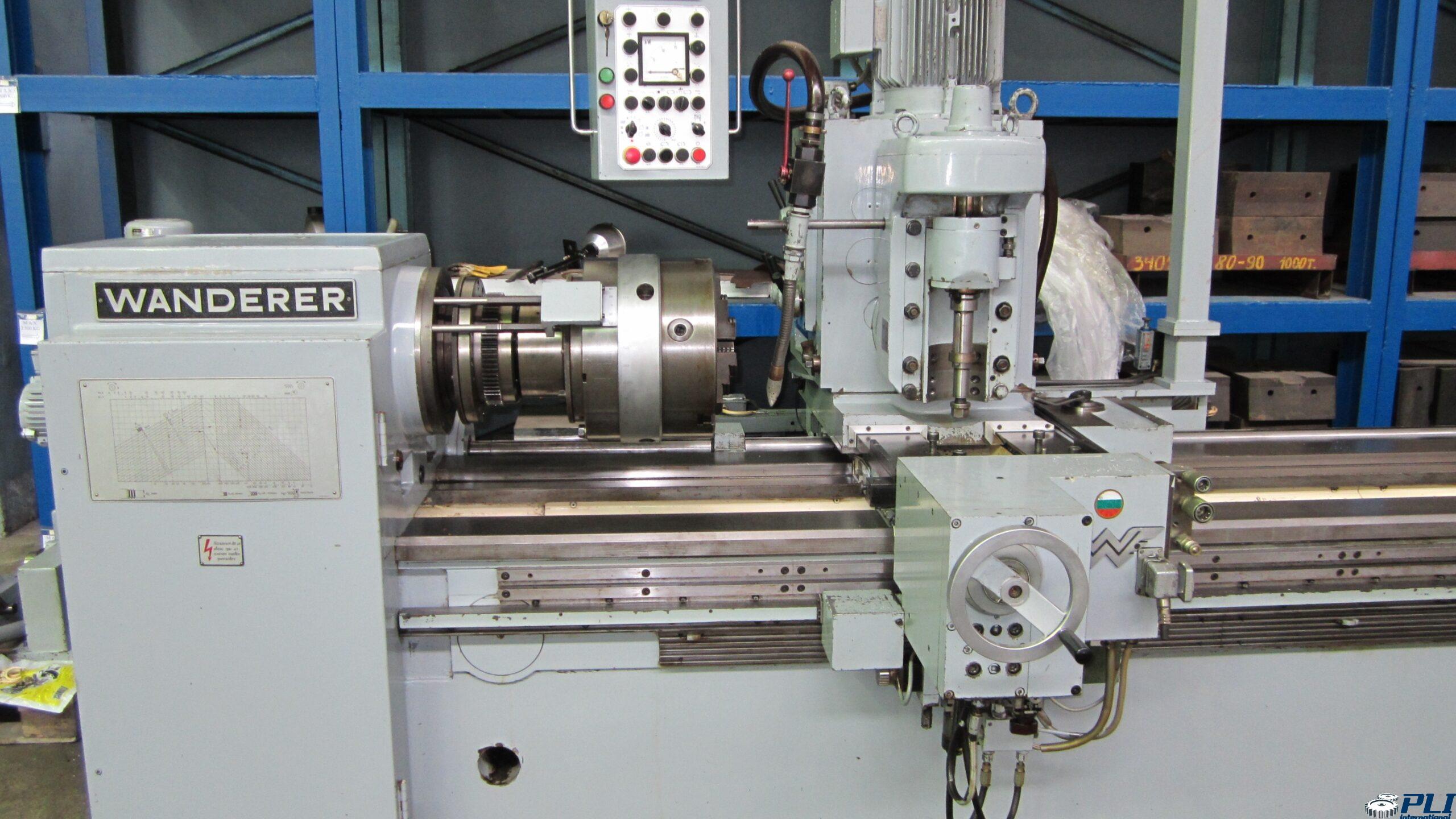

Wanderer GF 324N
YOM 1981
Max. workpiece diameter 600 mm
Threading length 4000 mm
Max. module 6 (8)
Workpiece length – max. 4100 mm
Workpiece dia. over saddle 320 / 350 mm
Centre height 320 mm
Turning speed range – spindle 0,004 – 80 U/min
Feed range 0,4 – 1600 mm/min
Rapid traverse 4 m/min
Spindle passage 120 mm
Milling motor 11 kW
Spindle diameter in front bearing 160 mm
Number of teeth 4 – 100
Pitch 2 – 1000 mm
Total power requirement 30 kW
Weight of the machine ca. 12 t
Dimensions of the machine ca. 7,7 x 2,0 x 2,1 m
Accessories :
3 jaws chuck
Milling head
Tailstock
Swarf convoyor
Change gears
Top condition
